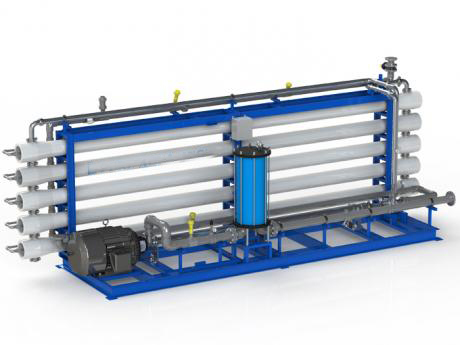

Industrial Sea Water Reverse Osmosis
Tasneem Water Treatment Co LLC
we supply a full line of industrial sea water reverse osmosis systems designed for heavy or continuous duty service in marine applications on and off shore. Our SWI Series is available with capacities ranging from 8,000 GPD to 500,000 GPD and a maximum feed water TDS of 42,000 ppm. We offer standard SWI Series units as well as customizable to fit you water application needs. From your five star resort to the world's largest sea water reverse osmosis plant in the United Arab Emirates, Pure Aqua is ready and able to provide only the best in industrial sea water reverse osmosis systems.
- Heavy duty 5 micron sediment cartridge pre-filter
- Premium quality sea water resistant SS pump,
- High quality, glycerin-filled 316 SS pressure gauges
- Product & Reject flow meters
- TFC spiral wound seawater TFC membranes, made in USA
- FRP membrane housings 1000 PSI
- 460V/3Ph/60Hz, other voltages are available upon request
- Low & High pressure switches
- Permeate TDS monitor
- PVC low pressure piping
- Stainless steel high pressure piping
- Stainless steel throttling valve for reject stream
- Automatic feed shut off valve
- Energy recovery on model: SW-63K-4480 and larger
- Epoxy coated steel frame using powder coating technology, with stainless steel footers
- Microprocessor/PLC based control panel
- VFD controller for larger systems
| Model No. | Permeate | Qty of 8" Membranes (single stage) | Motor HP at 1000 ppm | Approx. Weight | Dimensions | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPD | M3/D | Size | 60 HZ | 50 HZ | LBS. | ||||||||||||||||||||||
| SW-8.0K-1280 | 8,000 | 30 | 2 | 15 | 15 | 2,600 |
195"X42"X72" | ||||||||||||||||||||
| SW-12K-1380 | 12,000 | 45 | 3 | 20 | 25 | 2,600 | 195"X42"X72" | ||||||||||||||||||||
| SW-16K-1480 | 16,000 | 61 | 4 | 25 | 30 | 2,700 | 195"X60"X72" | ||||||||||||||||||||
| SW-24K-2380 | 24,000 | 91 | 6 | 40 | 45 | 3,200 | 195"X60"X72" | ||||||||||||||||||||
| SW-32K-2480 | 32,000 | 121 | 8 | 60 | 65 | 4,200 | 195"X72"X72" | ||||||||||||||||||||
| SW-48K-2680 | 48,000 | 182 | 12 | 75 | 80 | 5,600 | 195"X72"X72" | ||||||||||||||||||||
| SW-64K-4480 | 64,000 | 242 | 16 | 60 | 65 | 6,500 | 195"X72"X72" | ||||||||||||||||||||
| SW-72K-3680 | 72,000 | 273 | 18 | 60 | 65 | 12,000 | 368"X50"X80" | ||||||||||||||||||||
| SW-96K-4680 | 96,000 | 363 | 24 | 85 | 100 | 13,000 | 368"X50"X80" | ||||||||||||||||||||
| SW-112K-4780 | 112,000 | 424 | 28 | 100 | 110 |
14,000 | 475"X65"X80" | ||||||||||||||||||||
| SW-136K-5680 | 136,000 | 515 | 34 | 110 | 120 | 15,000 | 475"X65"X80" | ||||||||||||||||||||
| SW-168K-6780 | 168,000 | 636 | 42 | 120 | 130 |
17,500 | 475"X65"X80" | ||||||||||||||||||||
| SW-196K-7780 | 196,000 | 742 | 49 | 130 | 150 | 17,500 | 475"X65"X80" | ||||||||||||||||||||
| SW-224K-8780 | 224,000 | 848 | 56 | 160 |
175 | 17,200 | 350"X72"X79" | ||||||||||||||||||||
| SW-252K-9780 | 252,000 | 954 | 63 | 175 | 190 | 18,000 | 475"X65"X79" | ||||||||||||||||||||
| SW-280K-10780 | 280,000 | 1060 | 70 | 190 | 190 |
19,000 | 475"X65"X79" | ||||||||||||||||||||
| SW-317K-12780 | 317,000 | 1200 | 84 | 190 | 290 | 21,000 | 475"X65"X80" | ||||||||||||||||||||
| SW-420K-15780 | 420,000 | 1590 | 105 | 290 | 320 | 21,000 | 475"X65"X80" | ||||||||||||||||||||
| SW-500K-18780 | 500,000 | 1893 | 126 | 320 | 320 | 22,000 | 475"X65"X81" | ||||||||||||||||||||
PRODUCT Gallery
Services Overview
We have an able and experienced technical team ready to undertake the responsibility of installation & commissioning of equipment at site. And onsite training of customer’s personnel on the efficient operation & servicing of water treatment systems is indeed an essential practice of our team, with a vision of ensuring long and trouble free plant operational life.
