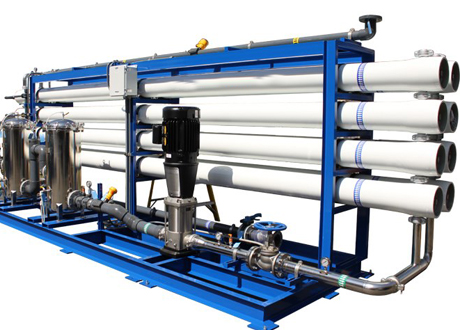

Industrial Reverse Osmosis Systems
Tasneem Water Treatment Co LLC
We offer a full line of Reverse Osmosis Systems designed for heavy or continuous duty service in many water applications. Our standard residential, commercial and industrial Tap and Brackish Water Reverse Osmosis Systems are available with capacities ranging from 200,000 to 900,000 GPD, with feed water TDS ranging from 1000 ppm to 5000 ppm. Pure Aqua’s Reverse Osmosis systems are capable of removing salts as well as other impurities such
as bacteria, sugars, proteins, dyes and constituents having a molecular weight greater than 150-250
dalton.
Standard Features
- Powder coated carbon steel frame
- 8” TFC spiral wound membranes
- Stainless steel multi-stage pump
- with TEFC motor
- FRP membrane housing
- 5 micron cartridge prefilter
- 460V/3Ph/60Hz power supply
- PLC based control panel
- Programmable time delay and set points
- Status indicators
- Motor starter
- NEMA 12 enclosure
- Low pressure switch
- High pressure switch
- Liquid filled pressure gauges
- Permeate conductivity monitor
- Permeate & concentrate flow meters
Available Options
- Remote monitor / control option
- Feed water conductivity monitor
- Membrane cleaning skid
- Automatic hourly flush
- Feed / Permeate blending
- Export crating
- 380-415V/3Ph/50Hz power supply
- 220V/3Ph/60Hz power supply
- Product tank level controller switch
- Feed pH controller with sensor
- Feed ORP controller with sensor
- Water and hour meters
- Chemical dosing systems
- Media and Iron prefiltration systems
- Ozonation and UV sterilization systems
- Water softeners
- Post deionization polishers
5 Stage Reverse Osmosis Systeme
5 micron polypropylene sediment pre-filter to extract materials such as sediments, insects, asbestos fiber, rust, and particles down to 5 micron. (Replace every 6-8 months)
Double carbon block filters to absorb heavy chlorine and heavy chlorine byproducts such as chloramine, THM, and TCE. The two carbon blocks filter out organic matter from water without releasing carbon fines, and help protect the membrane. (Replace every 8-12 months

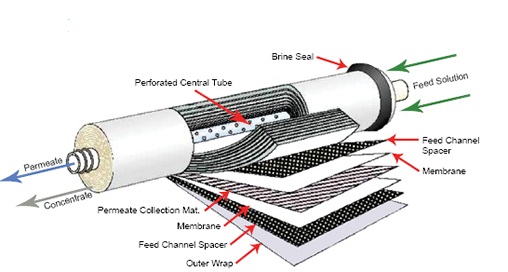

U.S. made high rejection Thin Film Composite (TFC) RO membrane to reject a wide spectrum of impurities including Total Dissolved Solids (TDS), bacteria, and viruses down to 0.0001 micron. The product water is sent to a storage tank, while the reject water is flushed down the drain. (Replace every 2-4 years)
In-line GAC filter is used to remove dissolved gases, bad taste and odor from the water kept in the storage tank. This is the final treatment before consumption. (Replace every 1-2 years)
5 micron polypropylene sediment pre-filter to extract materials such as sediments, insects, asbestos fiber, rust, and particles down to 5 micron. (Replace every 6-8 months)
Double carbon block filters to absorb heavy chlorine and heavy chlorine byproducts such as chloramine, THM, and TCE. The two carbon blocks filter out organic matter from water without releasing carbon fines, and help protect the membrane. (Replace every 8-12 months
U.S. made high rejection Thin Film Composite (TFC) RO membrane to reject a wide spectrum of impurities including Total Dissolved Solids (TDS), bacteria, and viruses down to 0.0001 micron. The product water is sent to a storage tank, while the reject water is flushed down the drain. (Replace every 2-4 years)
In-line GAC filter is used to remove dissolved gases, bad taste and odor from the water kept in the storage tank. This is the final treatment before consumption. (Replace every 1-2 years)
