Industrial Desalination
Tasneem Water Treatment Co LLC

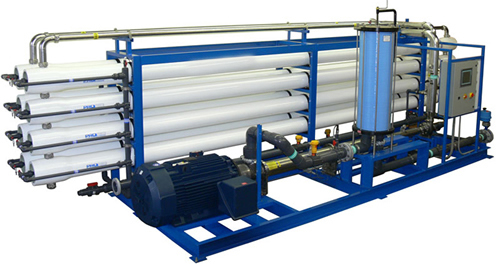

we supply a full line of sea water desalination systems designed for heavy or continuous duty service in marine applications on and off shore. Our SWI Series is available with capacities ranging from 8,000 GPD to 500,000 GPD and a maximum feed water TDS of 42,000 ppm. We offer standard SWI Series units as well as customizable to fit you water application needs. From your five star resort to the world's largest desalination plant in the United Arab Emirates, Pure Aqua is ready and able to provide only the best in industrial desalination systems.
- Heavy duty 5 micron sediment cartridge pre-filter
- Premium quality sea water resistant SS pump,
- High quality, glycerin-filled 316 SS pressure gauges
- Product & Reject flow meters
- TFC spiral wound seawater TFC membranes, made in USA
- FRP membrane housings 1000 PSI • 460V/3Ph/60Hz, other voltages are available upon request
- Low & High pressure switches
- Permeate TDS monitor
- PVC low pressure piping
- Stainless steel high pressure piping
- Stainless steel throttling valve for reject stream
- Automatic feed shut off valve
- Energy recovery on model: SW-63K-4480 and larger
- Epoxy coated steel frame using powder coating technology, with stainless steel footers
- Microprocessor/PLC based control panel
- VFD controller for larger systems
Model No. | Capacity at 42,000ppm | Qty of 8" Membranes | Feed Water TDS | HP | Dimensions | Weight Lbs | |
---|---|---|---|---|---|---|---|
M3/ Day | GPD | ||||||
Industrial Desalination Systems | |||||||
SW-8.0K-1280 | 30 | 8,000 | 2 | 42,000 PPM | 15 | 195"X42"X72" | 2,600 |
SW-12K-1380 | 45 | 12,000 | 3 | 42,000 PPM | 20 | 195"X42"X72" | 2,600 |
SW-16K-1480 | 61 | 16,000 | 4 | 42,000 PPM | 25 | 195"X60"X72" | 2,700 |
SW-24K-2380 | 91 | 24,000 | 6 | 42,000 PPM | 40 | 195"X60"X72" | 3,200 |
SW-32K-2480 | 121 | 32,000 | 8 | 42,000 PPM | 60 | 195"X72"X72" | 4,200 |
SW-48K-2680 | 182 | 48,000 | 12 | 42,000 PPM | 75 | 195"X72"X72" | 5,600 |
SW-64K-4480 | 242 | 64,000 | 16 | 42,000 PPM | 60 | 195"X72"X72" | 6,500 |
SW-72K-3680 | 273 | 72,000 | 18 | 42,000 PPM | 60 | 368"X50"X80" | 12,000 |
SW-96K-4680 | 363 | 96,000 | 24 | 42,000 PPM | 85 | 368"X50"X80" | 13,000 |
SW-112K-4780 | 424 | 112,000 | 28 | 42,000 PPM | 100 | 475"X65"X80" | 14,000 |
SW-136K-5680 | 515 | 136,000 | 34 | 42,000 PPM | 110 | 475"X65"X80" | 15,000 |
SW-168K-6780 | 636 | 168,000 | 42 | 42,000 PPM | 120 | 475"X65"X80" | 17,500 |
SW-196K-7780 | 742 | 196,000 | 49 | 42,000 PPM | 130 | 475"X65"X80" | 17,500 |
SW-224K-8780 | 848 | 224,000 | 56 | 42,000 PPM | 160 | 475"X65"X79" | 17,200 |
SW-252K-9780 | 954 | 252,000 | 63 | 42,000 PPM | 175 | 475"X65"X79" | 18,000 |
SW-280K-10780 | 1060 | 280,000 | 70 | 42,000 PPM | 190 | 475"X65"X79" | 19,000 |
SW-317K-12780 | 1200 | 317,000 | 84 | 42,000 PPM | 190 | 475"X65"X80" | 21,000 |
SW-420K-15780 | 1590 | 420,000 | 105 | 42,000 PPM | 290 | 475"X65"X80" | 21,000 |
SW-500K-18780 | 1893 | 500,000 | 126 | 42,000 PPM | 320 | 475"X65"X81" | 22,000 |
